thymeleaf中layout:fragment的使用和布局

wylc123 1年前 ⋅ 499 阅读

https://blog.csdn.net/hry2015/article/details/73476973

Thymeleaf有多种方式引入

  • th:insert    3.0+版本新加的

  • th:replace  2.0+ 3.0+都可用

  • th:include   这个在3.0版本已经不建议使用

  • th:include:加载模板的内容: 读取加载节点的内容(不含节点名称),替换div内容

  • th:replace:替换当前标签为模板中的标签,加载的节点会整个替换掉加载他的div

前两个的区别(直接看例子,来自官方):


  ? 2011 The Good Thymes Virtual Grocery
            ? 2011 The Good Thymes Virtual Grocery
      ? 2011 The Good Thymes Virtual Grocery

      ? 2011 The Good Thymes Virtual Grocery



作者:_流浪的猫_
链接:https://www.jianshu.com/p/db16d4d8d9c7
來源:简书
著作权归作者所有。商业转载请联系作者获得授权,非商业转载请注明出处。

1. 概述

在web开发中,我们经常会将公共头,公共尾,菜单等部分提取成模板供其它页面使用。在thymeleaf中,通过th:fragment、th:include、th:replace、参数化模板配置、css选择器加载代码块等实现。下文通过例子来说明用法:

  • fragment语法

  • 通过 th:fragment 和 css选择器加载代码块

  • th:include 和 th:replace

  • 参数化模板配置

这应该是Thymeleaf系列的最后一篇,不容易啊!夸夸一下自己,呵呵!

注意

  • spring boot 1.5.4 默认使用的 thymeleaf 2,这里只演示thymeleaf 2语法

2. 例子

2.1. 公共页

/templates/template/footer.html
此页面定义待加载的模板页面

<!DOCTYPE html><html xmlns:th="http://www.thymeleaf.org"><meta charset="UTF-8" /><body>
    <!-- th:fragment 定义用于加载的块 -->
    <span th:fragment="copy"> 2017 hry loaded by fragment=copy</span>

    <span id="copy-section"> 2017 hry loaded by id=copy-section</span>

    <!-- 定义模板时,可以传入参数 -->
    <span th:fragment="frag(month, date) "> <span th:text="'welcome hry come in ' + ${month} + '-' + ${date}"></span></span>

  </body></html>123456789101112131415

2.2. fragment语法

/templates/template/footer.html:定义要加载代码块copy

<!-- th:fragment 定义用于加载的块 --><span th:fragment="copy"> 2017 hry loaded by fragment=copy</span>12

/templates/template/template.html:通过th:include在本页中加载以上的代码块copy,fragment加载语法如下:

  • templatename::selector:”::”前面是模板文件名,后面是选择器

  • ::selector:只写选择器,这里指fragment名称,则加载本页面对应的fragment

  • templatename:只写模板文件名,则加载整个页面

    ================== fragment语法 ============================= <br />
    <!--  语法说明  "::"前面是模板文件名,后面是选择器 -->
    <div th:include="template/footer::copy"></div>
    <!-- 只写选择器,这里指fragment名称,则加载本页面对应的fragment -->
    <div th:include="::#thispage"></div>
    <!-- 只写模板文件名,则加载整个页面 -->
    <div th:include="template/footer"></div>================= 加载块 ============================<br /><span id="thispage">
    div in this page.</span>123456789101112

运行结果输出:

    ================== fragment语法 ============================= <br />
    <!--  语法说明  "::"前面是模板文件名,后面是选择器 -->
    <div> 2017 hry loaded by fragment=copy</div>
    <!-- 只写选择器,这里指fragment名称,则加载本页面对应的fragment -->
    <div>
        div in this page.    </div>
    <!-- 只写模板文件名,则加载整个页面 -->
    <div>
        <html>
        <meta charset="UTF-8" />
        <body>
            <!-- th:fragment 定义用于加载的块 -->
            <span> 2017 hry loaded by fragment=copy</span>

            <span id="copy-section"> 2017 hry loaded by id=copy-section</span>

            <!-- 定义模板时,可以传入参数 -->
            <span> <span>welcome hry come in 6-19</span></span>

          </body>

        </html></div>123456789101112131415161718192021222324

2.3. 通过 th:fragment 和 css选择器加载代码块

/templates/template/footer.html:
除了th:fragment外,还可以css选择器加载代码块。下文定义th:fragment=”copy”和id=”copy-section”。

    <!-- th:fragment 定义用于加载的块 -->
    <span th:fragment="copy"> 2017 hry loaded by fragment=copy</span>

    <span id="copy-section"> 2017 hry loaded by id=copy-section</span>1234

/templates/template/template.html:

  • 通过 th:fragment 加载代码块

  • 通过css选择器加载代码块

================= 通过 th:fragment 和 css选择器加载代码块 =================<!-- 这里加载”th:fragment 定义用于加载的块“ --><div th:include="template/footer::copy"></div><!-- 这里加载”id=copy-section“的节点 --><div th:include="template/footer::#copy-section"></div> 12345

运行结果输出:

================= 通过 th:fragment 和 css选择器加载代码块 =================<!-- 这里加载”th:fragment 定义用于加载的块“ --><div> 2017 hry loaded by fragment=copy</div><!-- 这里加载”id=copy-section“的节点 --><div> 2017 hry loaded by id=copy-section</div> 12345

2.4. th:include 和 th:replace

th:include 和 th:replace都是加载代码块内容,但是还是有所不同,下面会展示两者不同。

/templates/template/footer.html:

<!-- th:fragment 定义用于加载的块 --><span th:fragment="copy"> 2017 hry loaded by fragment=copy</span>123

/templates/template/template.html:

  • th:include:加载模板的内容: 读取加载节点的内容(不含节点名称),替换div内容

  • th:replace:替换当前标签为模板中的标签,加载的节点会整个替换掉加载他的div

================= th:include 和 th:replace============================<!-- 加载模板的内容: 读取加载节点的内容(不含节点名称),替换<div>的内容 --><div th:include="template/footer::copy">1</div><!-- 替换当前标签为模板中的标签: 加载的节点会整个替换掉加载他的<div>  --><div th:replace="template/footer::copy">2</div>12345

运行结果输出:

<!-- 加载模板的内容: 读取加载节点的内容(不含节点名称),替换<div>的内容 --><div> 2017 hry loaded by fragment=copy</div><!-- 替换当前标签为模板中的标签: 加载的节点会整个替换掉加载他的<div>  --><span> 2017 hry loaded by fragment=copy</span>1234

2.5. 参数化模板配置

/templates/template/footer.html:
  指定fragment时,可以指定变量

<!-- 定义模板时,可以传入参数 --><span th:fragment="frag(month, date) "> <span th:text="'welcome hry come in ' + ${month} + '-' + ${date}"></span></span>123

/templates/template/template.html:
 向模板中传入变量值

================= 参数化模板配置 ============================
<div th:include="template/footer::frag(${month},${date})">...</div>123

运行结果输出:

================= 参数化模板配置 ============================<div> <span>welcome hry come in 6-19</span></div>12

3. 代码

详细见代码Github



解釋:

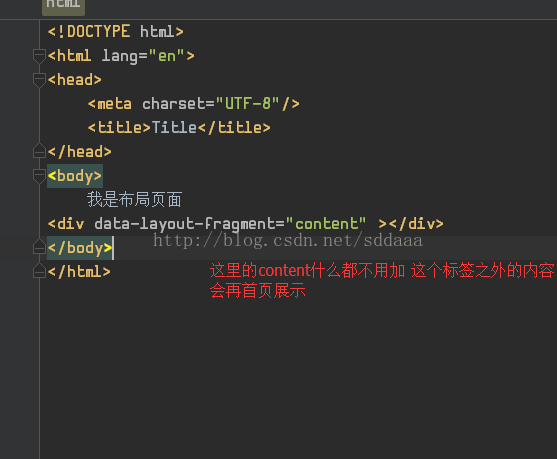

=================decorator方式是整个布局文件替换 不是片段替换=================

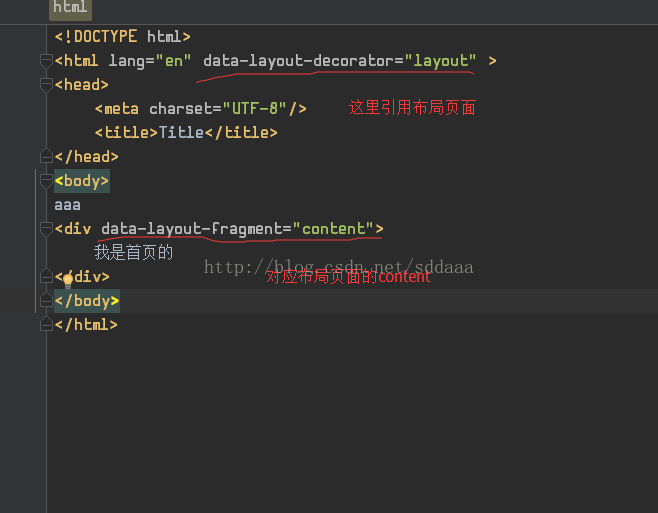

index.html引用layout.html后 data-layout-fragment='content' 这个标签之外的内容就是layout.html的内容,这个标签之内的部分不会被替换

layout.html的content里面的内容在index.html不会显示,单独访问会显示

=============================下面这种依照官方最新版========================

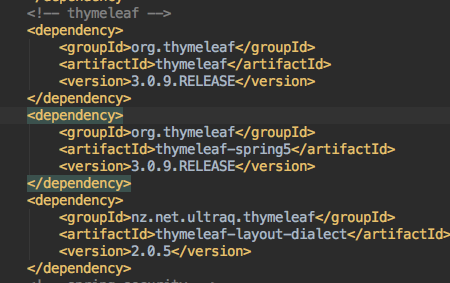

依赖包

footer.html文件↓↓↓↓↓↓↓

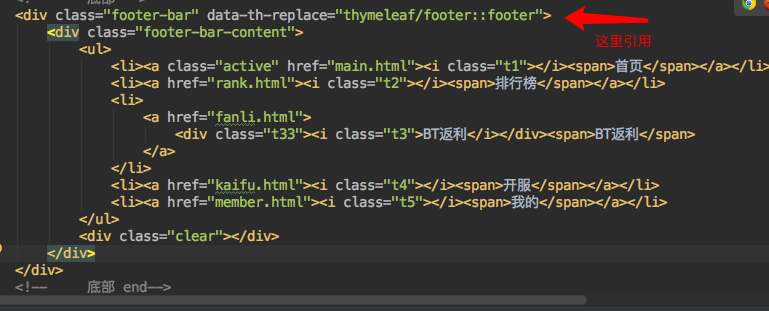

main.html

符号前面的是路径 从web-info开始  后面就是引用footer.html定义的footer



描述写得不好,看不懂可以直接引入包 照着代码敲一遍就可以看见效果了(spring mvc 这些基础配置还是要有的哈)
